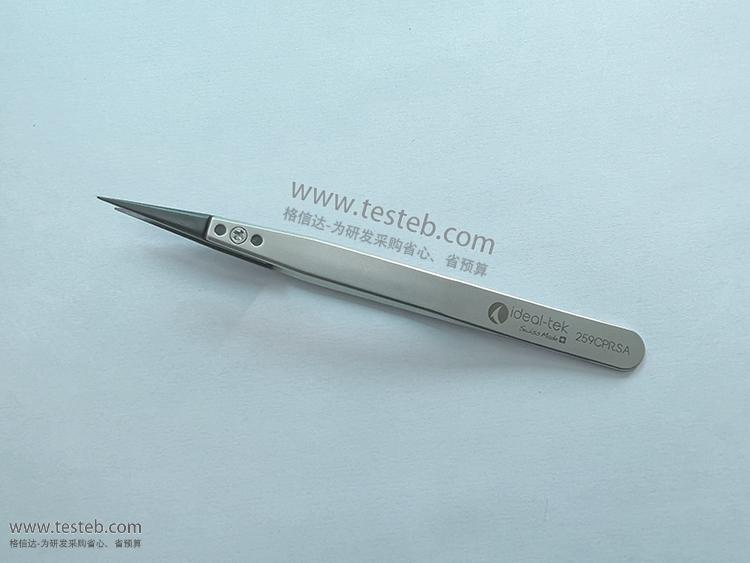

瑞士IDEAL-TEK 259CPR.SA鑷子CP碳纖維增強PEEK材質耐腐蝕

瑞士IDEAL-TEK SA是著名的手動工具制造商，致力于研究和開發新的手動工具解決方案，每一個產品線都經過與客戶的詳盡研究，開發和協作，以確保完全匹配應用需求。Ideal-tek鑷子、剪鉗和精密電子螺絲刀等工具符合SWISS MADE品質，高可靠的質量、齊全的規格和新穎的設計，廣泛使用于精密電子和半導體、醫療器械設備、航空航天、顯微鏡和實驗室、制表珠寶等行業。ideal-tek在高級工程塑料材料方面擁有豐富經驗，CF碳素纖維材質具有低摩擦和自潤滑性能，良好的熱穩定性，ESD防靜電安全，非常適合用來夾取敏感電子元件、芯片、玻璃和陶瓷基板等，如5CFR.SA型號。CP碳纖維增強PEEK聚醚醚酮材質具有非常出色的耐化學品和耐腐蝕性能，用于清潔、化學溶劑環境、組裝過程中處理元件，耐高溫300℃，ESD安全，高硬度耐磨，如242CPR.SA和259CPR.SA鑷子等。

Ideal-tek塑料鑷子頭材質特性

1、Engineering plastic type CF工程塑料碳素纖維

PA66/CF30 polyamide 66 reinforced with 30 wt% carbon fibre 含30wt％碳纖維增強的PA66/CF30聚酰胺66

heat stabilized, very low coefficient of linear thermal expansion, good heat capability

熱穩定，線性熱膨脹系數非常低，良好的散熱能力

very high rigidity, excellent tensile and flexural strength, fatigue and creep resistance

極高的剛性，出色的拉伸和彎曲強度，抗疲勞和蠕變性能

low friction, self lubricating properties, excellent wear and abrasion resistance

低摩擦，自潤滑性能，出色的耐磨性

good chemical resistance (oils, grease, fuels, non polar solvents); not resistant to strong acids, alkalis and hot water or steam

良好的耐化學性（機油，油脂，燃料，非極性溶劑）；不耐強酸、強堿和熱水或蒸汽

ESD safe material, (avoids dust attraction, sparks generation,ignition sources)ESD防靜電（避免塵埃，火花，點火源）

typical applications include handling of sensitive components and devices (electronic components, micro-mechanical parts, glass and ceramic substrates, capillary, etc.)

典型應用包括處理敏感組件和設備，如電子元件、芯片、微機械零件、玻璃和陶瓷基板、毛細管等

2、High-performance plastic type CP高性能塑料PEEK聚醚醚酮

PEEK/CF30 polyetheretherketone reinforced with 30 wt% carbon fibre

very hard, rigid, high tensile and flexural strength, very high wear resistance

high heat capability (260-300°C), good dimension stability, low thermal linear expansion coefficient

excellent resistance to chemicals and aggressive agents, excellent resistance to thermal ageing

ESD safe material, low surface resistivity (105 Ohm)

typical applications include handling of components in cleaning/chemical/assembly processes also at high temperatures (soldering)

含30wt％的碳纖維增強的PEEK/CF30聚醚醚酮

非常堅硬，剛性，高抗拉強度和撓曲強度，非常高的耐磨性

高熱容量（260-300°C），良好的尺寸穩定性，低的線性熱膨脹系數

出色的耐化學品和耐腐蝕性能，出色的抗熱老化性能

ESD安全材料，低表面電阻率（10^5歐姆）

典型應用包括清潔、化學溶劑環境、組裝過程中處理元件，可在高溫焊接下操作

3、High performance plastic type SV高性能塑料PVDF聚偏氟乙烯

PVDF碳纖維增強，優異的機械強度和韌性，高耐磨性

耐紫外線和輻射滅菌，連續使用溫度高達150°C，ESD防靜電安全

光滑的表面，高純度符合無塵室和醫療等級要求，萃取值低

耐腐蝕，耐化學性，包括無機酸和有機酸、溶劑、鹵素等

對HF氫氟酸（40％濃度，90°C）、硝酸（50％濃度，90°C）、鹽酸（36％濃度，90°C）具有出色的耐受性

典型應用包括對劃痕和污染敏感的組件的處理、清潔和蝕刻流程

259CPR.SA鑷子規格文檔http://iamabigfatstupidface.com/download/202302/ideal-tek_259CPR.SA_Datasheet.pdf

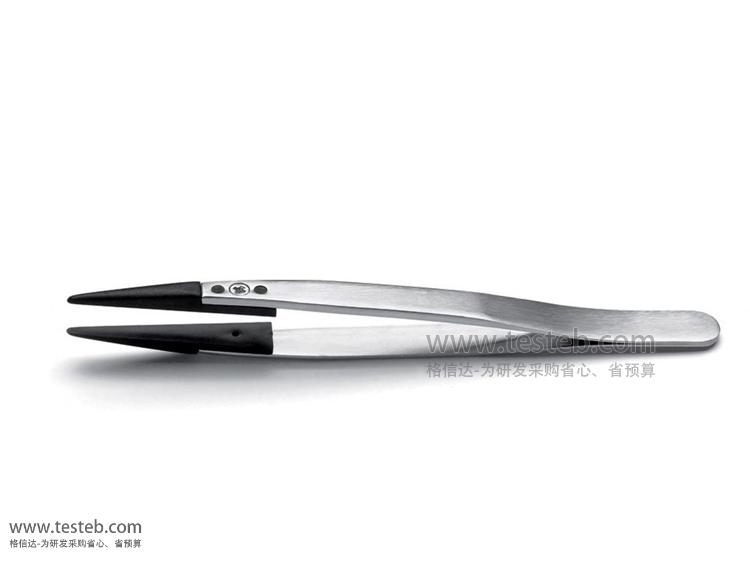

IDEAL-TEK Plastic Replaceable Tip Tweezers可替換塑料頭鑷子型號規格

idealtek可替換塑料頭鑷子規格說明書http://iamabigfatstupidface.com/download/202002/ideal-tek_4WFCPR_5CFR_259CFR.pdf
