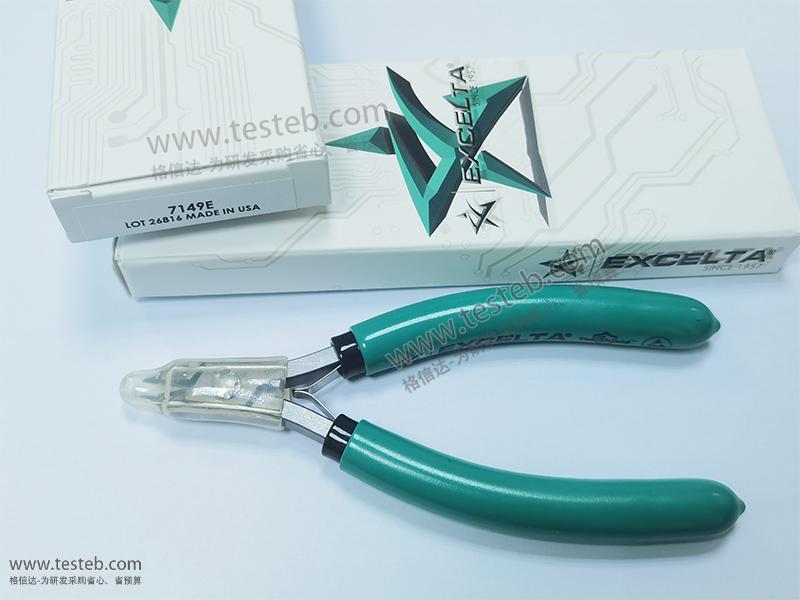

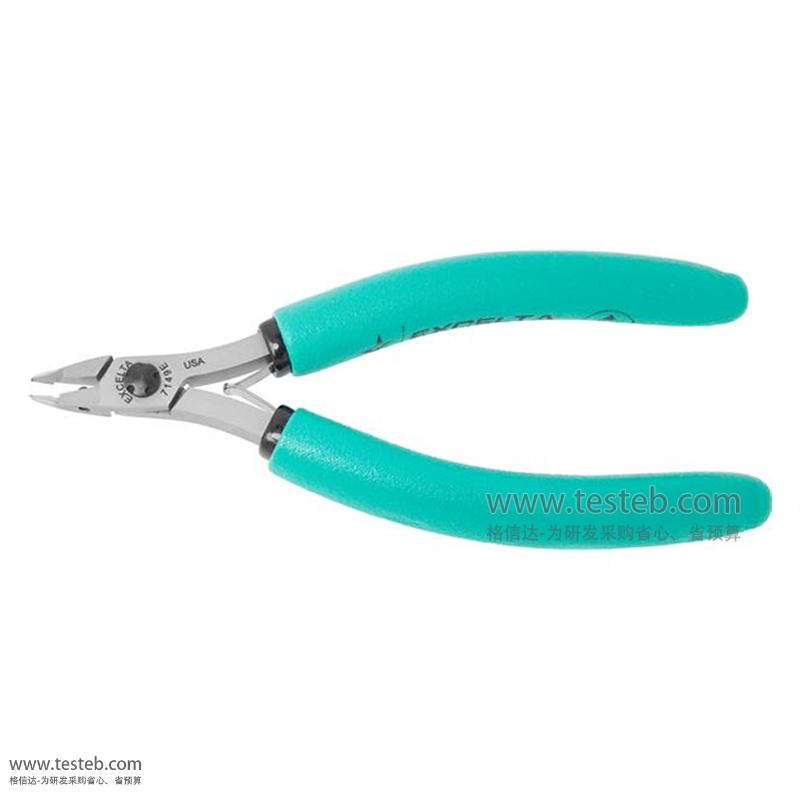

EXCELTA 7149E尖口剪鉗刀刃經過感應淬火硬化具有63-65HRC洛氏硬度,剪徑范圍0.63mm/0.025英寸,超齊平剪切效果,尖錐形減壓緩沖小鉗頭Tapered/Relieved Fine Tips,可在狹小空間進行精密操作,質量等級5星,全長143mm,ESD防靜電雙色軟手柄。
美國Excelta品牌1950年代誕生于加利福尼亞,專業制作高端夾子、鑷子、鉗子、刀具和小型精密工具,應用于軍工航天、消費電子、醫療器械制造、電子組裝、修理行業、高校和實驗室。EXCELTA®, Altima®, Precista®, Optima®, Cobaltima®, Neverust®, Selecta®, Lazer Line ™, Ergo-Tweeze®, Intellitweeze® 和TweezerMeter®等均為其擁有的注冊商標。
EXCELTA剪鉗采用美國制造的優質鋼,經過一致性的激光切割和數控加工,保證規格精確,切削刀刃感應淬火達到63-65洛氏硬度,獲得耐用性且精密高硬度的鋒利工具,能夠滿足所有切削需要。美國Excelta 7149E尖口剪鉗剪徑0.63mm,超齊平剪切效果,尖錐形減壓小型鉗頭,全長145mm,ESD防靜電雙色泡沫軟手柄,質量等級5五星。規格資料文檔http://iamabigfatstupidface.com/download/202307/Excelta_7149E_datasheet.pdf。
型號 | 剪徑范圍(銅鋁軟線) | 切口效果 | 手柄 | 長度類型 |
7371E | 0.25mm / 0.010" | Lazer-Flush超齊平 | SL Molded單色小短柄 硬 |
Smallest Fine Tapered Tips 窄尖細錐形頭,全長106mm |
7171E剪鉗 | 0.25mm / 0.010" | Lazer-Flush完全齊平剪切 | Long Cushion雙色軟柄 較長 |
Small Tapered Tips細錐形頭斜口鉗 144mm |
7271E | 0.25mm / 0.010" | Lazer-Flush | Molded單色手柄 硬 |
Small Tapered Tips細錐形頭 131mm |
7170E尖口鉗 | 0.5mm / 0.020" | Lazer-Flush | Long Cushion雙色軟柄 |
Medium Tapered Tips中等錐形尖頭 156mm |
7270E | 0.5mm / 0.020" | Lazer-Flush | Molded單色手柄 |
Medium Tapered Tips中等錐形尖頭 119mm |
7170EA剪鉗 | 0.5mm / 0.020" | Lazer-Flush | Long Cushion雙色軟柄長 |
Tapered/Relieved Fine Tips 錐形減壓小尖頭,全長156mm |
7270EA | 0.5mm / 0.020" | Lazer-Flush | Molded單色手柄 |
Tapered/Relieved Fine Tips 錐形減壓小尖頭,131mm |
7149E剪鉗 | 0.63mm / 0.025" | Lazer-Flush完全齊平剪切 | Long Cushion雙色軟柄 |
Tapered/Relieved Fine Tips 143mm |
7249E | 0.63mm / 0.025" | Lazer-Flush | Molded單色手柄 |
Tapered/Relieved Fine Tips 125mm |
美國制造MADE IN USA,質量等星5顆星★★★★★ULTRA PRECISION;
7100系列Long Cushion Grip雙色軟柄防靜電10^10Ω
7200系列Molded Grip及7300 Series SL Molded Grip,均為ESD Safe防靜電手柄10^8 ohms/sq.
Excelta尖口剪鉗規格文檔http://iamabigfatstupidface.com/download/202307/EXCELTA_7171E_7249E_Tapered_Tips.pdf
半齊平Semi-Flush:剪切線材斷面會留下0.01“即0.25mm的楔形斷面突出,也就是留有足夠的縫隙保證兩邊刀刃不會碰在一起導致?lián)p壞,半齊平鉗子使用壽命長,但是會在線材上留下夾傷夾痕。Semi-Flush cutters have a cutting edge with a .010” bevel, which produces more cuts than a maximum flush cutter but leaves a ‘pinch’ on the lead/wire.
齊平Optimum-Flush:斷面僅出現0.005“即0.127mm的楔形突出,兼顧使用壽命和剪切效果。Optimum-Flush cutters have a cutting edge with a .005” bevel, which produces a smaller ‘pinch’ on the lead/wire than a semi-flush cutter. The smaller bevel means fewer cuts than a semi-flush cutter.
超齊平Lazer-Flush:斷面完全齊平,無任何突出或斜面,可在引腳/導線上產生光潔平整切割面(僅適用于細線或塑料硅膠軟線材質),刀刃非常鋒利但是刀刃也很薄,切割壽命會再次縮短。Lazer-Flush cutters have no bevel producing a pure, clean cut with no ‘pinch’ on the lead/wire. The cutting edges are extremely sharp. Cutting life is once again reduced over either of the above.
