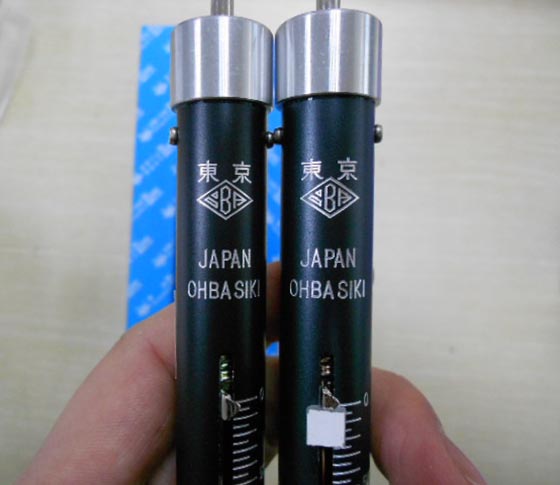

日本東京OBA 500g彈簧稱標準型測試時不保留測試峰值,w/p是帶置針型,上面有一塊白色小塊,在測量時可以保留最大讀數,O-BT 500G彈簧稱用于測試產品的推力及拉力,操作簡單,性能穩定。
彈簧秤/拉力棒品牌:OHBA SIKI大場OBA
日本OBA拉力棒有標準型與置針型之分:標準型測試時不保留測試峰值,測試峰值就是當時最大測試數值;w/p是帶置針型,上面有一塊白色小塊,在測量時可以保留最大讀數。OBA大場牌拉力棒/彈簧秤應用于:電子及電路板工業、玩具及塑膠工業、制衣用紡織工業、模具及五金製造行業,測試產品的推力及拉力,操作簡單,精度高,性能穩定。O-BT 500G彈簧拉力棒最大量程500克,最小刻度10g,基本誤差精度35g。東京OBA拉力棒分為G制型和N牛頓單位刻度,每種刻度類型又分為標準單針型和雙針置針型,W/P置針雙針型可記錄測量峰值,如OBA 500G W/P置針型拉力棒等。

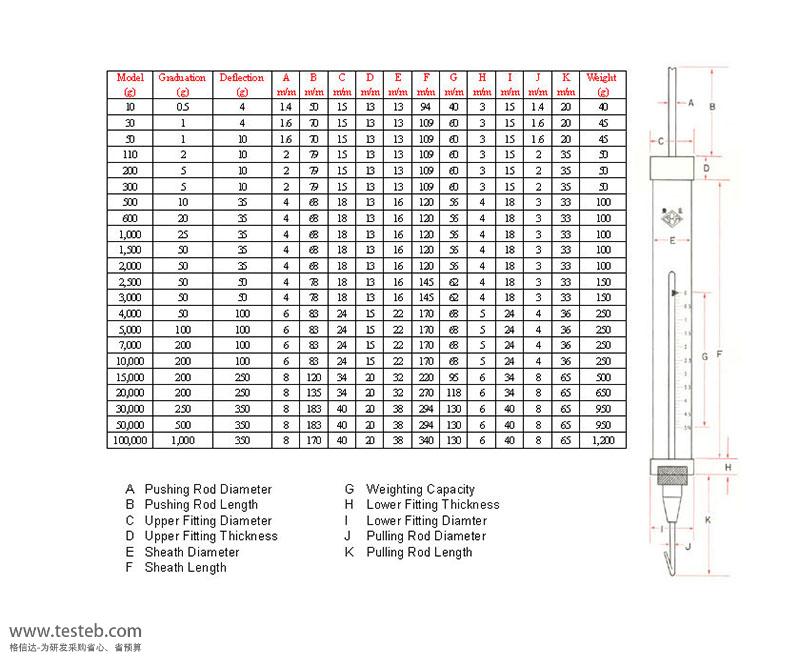

型號量程 | 刻度分辨率 | 精度 | A桿徑 | B桿長 | C | D | E筒徑 | F筒長 | G刻度長 | H | I | J鉤直徑 | K鉤長 |
0-50g拉力棒 | 1g | 10g | 1.6 mm | 70 mm | 15 mm | 13 mm | 13 mm | 109 mm | 60 mm | 3 mm | 15 | 1.6 mm | 45 mm |
110g彈簧秤 | 2g | 10g | 2 mm | 79 mm | 15 mm | 13 mm | 13 mm | 109 mm | 60 mm | 3 mm | 15 | 2 mm | 50 mm |
OAB 200g | 5g | 10g | 2 mm | 79 mm | 15 mm | 13 mm | 13 mm | 109 mm | 60 mm | 3 mm | 15 | 2 mm | 50 mm |
300g w/p雙針 | 5g | 10g | 2 mm | 79 mm | 15 mm | 13 mm | 13 mm | 109 mm | 60 mm | 3 mm | 15 | 2 mm | 50 mm |
500g彈簧秤 | 10g | 35g | 4 mm | 68 mm | 18 mm | 13 mm | 16 mm | 120 mm | 56 mm | 4 mm | 18 | 4 mm | 100 mm |
600g | 20g | 35g | 4 mm | 68 mm | 18 mm | 13 mm | 16 mm | 120 mm | 56 mm | 4 mm | 18 | 4 mm | 100 mm |
1000g拉力計 | 25g | 35g | 4 mm | 68 mm | 18 mm | 13 mm | 16 mm | 120 mm | 56 mm | 4 mm | 18 | 4 mm | 100 mm |
1500g | 50g | 35g | 4 mm | 68 mm | 18 mm | 13 mm | 16 mm | 120 mm | 56 mm | 4 mm | 18 | 4 mm | 100 mm |
O-BT 2000g | 50g | 35g | 4 mm | 68 mm | 18 mm | 13 mm | 16 mm | 120 mm | 56 mm | 4 mm | 18 | 4 mm | 100 mm |
2500g | 50g | 50g | 4 mm | 78 mm | 18 mm | 13 mm | 16 mm | 145 mm | 62 mm | 4 mm | 18 | 4 mm | 150 mm |
3000g單針型 | 50g | 50g | 4 mm | 78 mm | 18 mm | 13 mm | 16 mm | 145 mm | 62 mm | 4 mm | 18 | 4 mm | 150 mm |
4000g | 50g | 100g | 6 mm | 83 mm | 24 mm | 15 mm | 22 mm | 170 mm | 68 mm | 5 mm | 24 | 6 mm | 250 mm |
oba 5000g | 100g | 100g | 6 mm | 83 mm | 24 mm | 15 mm | 22 mm | 170 mm | 68 mm | 5 mm | 24 | 6 mm | 250 mm |
7000g | 200g | 100g | 6 mm | 83 mm | 24 mm | 15 mm | 22 mm | 170 mm | 68 mm | 5 mm | 24 | 6 mm | 250 mm |
10000g/ 10KG拉力計 | 200g | 100g | 6 mm | 83 mm | 24 mm | 15 mm | 22 mm | 170 mm | 68 mm | 5 mm | 24 | 6 mm | 250 mm |
15000g | 200g | 250g | 8 mm | 120 mm | 34 mm | 20 mm | 32 mm | 220 mm | 95 mm | 6 mm | 34 | 8 mm | 500 mm |
20000g | 200g | 250g | 8 mm | 135 mm | 34 mm | 20 mm | 32 mm | 270 mm | 118 mm | 6 mm | 34 | 8 mm | 650 mm |
30000g | 250g | 350g | 8 mm | 183 mm | 40 mm | 20 mm | 38 mm | 294 mm | 130 mm | 6 mm | 40 | 8 mm | 950 mm |
50000g | 500g | 350g | 8 mm | 183 mm | 40 mm | 20 mm | 38 mm | 294 mm | 130 mm | 6 mm | 40 | 8 mm | 950 mm |
100000g | 1000g | 350g | 8 mm | 170 mm | 40 mm | 20 mm | 38 mm | 340 mm | 130 mm | 6 mm | 40 | 8 mm | 1200 mm |

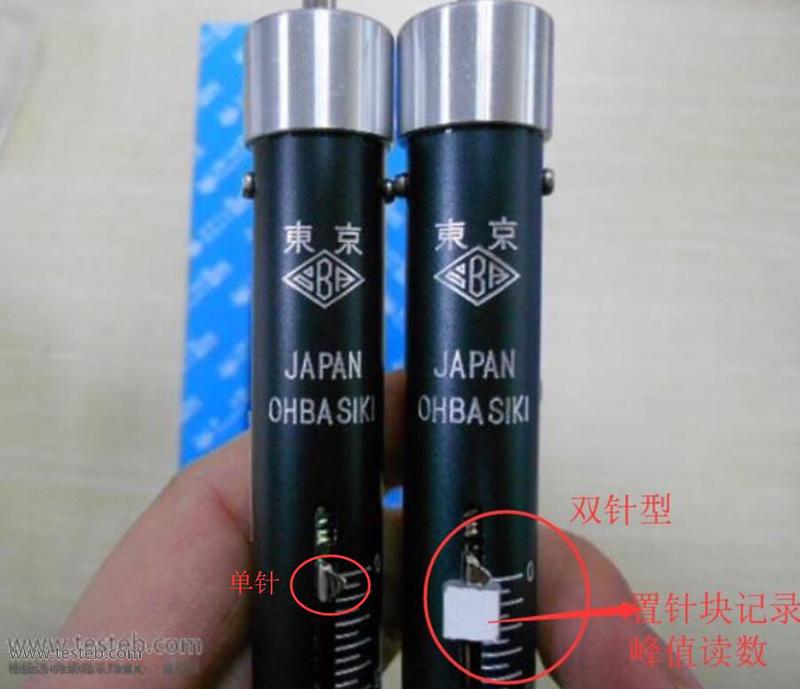

標準型號為單針型,靜止讀數;w/p雙針型帶置針,可記錄峰值讀數。
公克制:OBA 50G拉力棒、O-BT 110G、O-BT 200g、0-500g拉力計單針、OBA 500G雙針型、10kg彈簧秤
牛頓制:O-BT 2N推力計、OBA 20N彈簧拉力棒、O-BT 10N / 20N / 50N彈簧測力計
