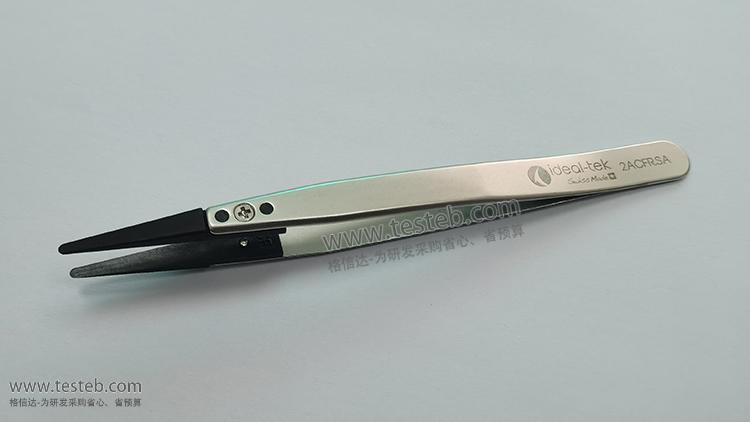

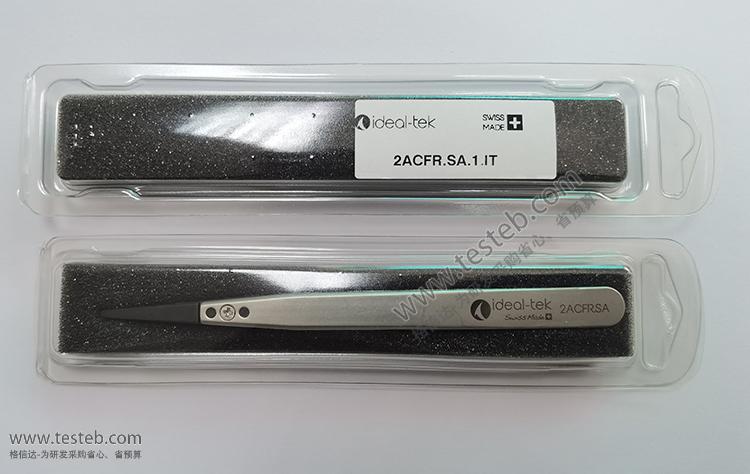

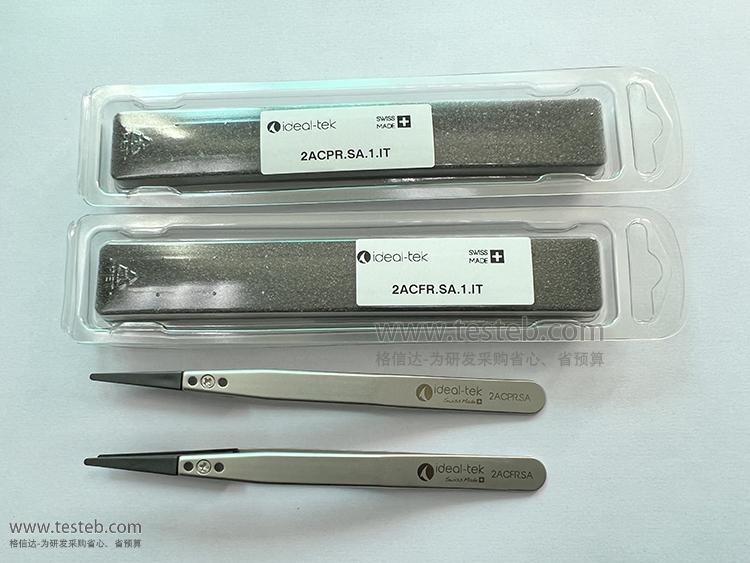

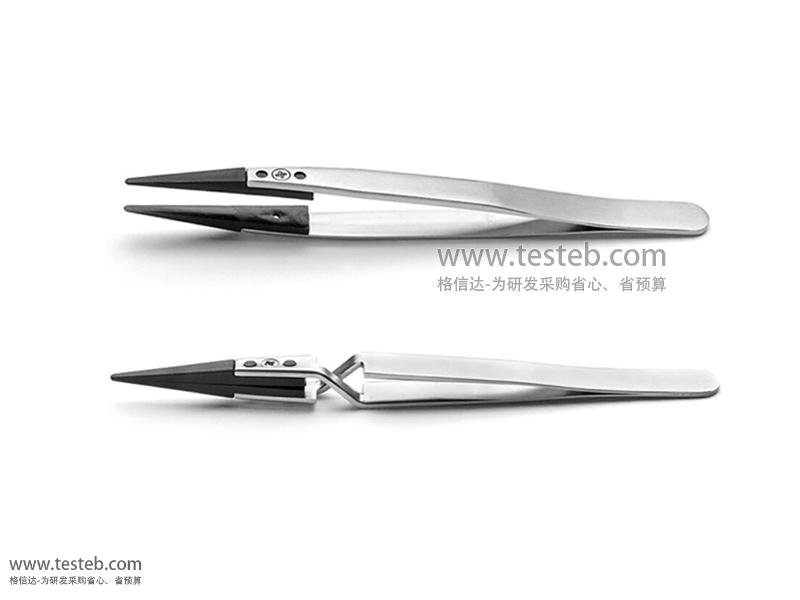

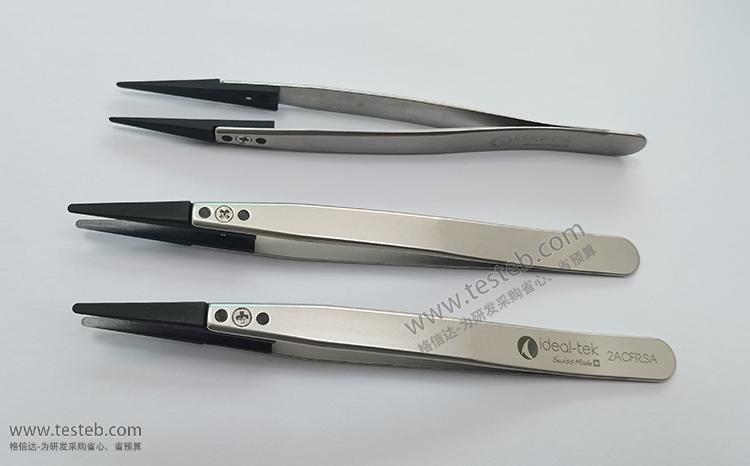

瑞士ideal-tek 2ACFR.SA平頭鑷子2mm扁平塑料尖頭ESD防靜電

瑞士Ideal-tek根據不同應用場景需求，開發各種材質性能的鑷子，CF碳素纖維樹脂材質具有低摩擦和自潤滑性能，良好的熱穩定性，ESD防靜電安全，非常適合用來夾取敏感電子元件、芯片、玻璃和陶瓷基板等。CP高性能PEEK聚醚醚銅（PEEK）具有非常出色的耐化學品和耐腐蝕性能，用于清潔、化學溶劑環境、組裝過程中處理元件，耐高溫300℃，ESD安全，高硬度耐磨。ideal-tek 2ACFR.SA鑷子采用CF塑料頭，扁圓形尖頭寬度2mm，手柄非磁性不銹鋼材料，全長130mm，通過購買更換一對兩片的塑料鑷子頭A2ACF來替換以降低重復使用成本。2ACFR.SA鑷子規格文檔http://iamabigfatstupidface.com/download/202302/ideal-tek_2ACFR.SA_Datasheet.pdf

Ideal-tek塑料鑷子頭材質特性

1、Engineering plastic type CF工程塑料碳素樹脂纖維

PA66/CF30 polyamide 66 reinforced with 30 wt% carbon fibre 含30wt％碳纖維增強的PA66/CF30聚酰胺66

heat stabilized, very low coefficient of linear thermal expansion, good heat capability

熱穩定，線性熱膨脹系數非常低，良好的散熱能力

very high rigidity, excellent tensile and flexural strength, fatigue and creep resistance

極高的剛性，出色的拉伸和彎曲強度，抗疲勞和蠕變性能

low friction, self lubricating properties, excellent wear and abrasion resistance

低摩擦，自潤滑性能，出色的耐磨性

good chemical resistance (oils, grease, fuels, non polar solvents); not resistant to strong acids, alkalis and hot water or steam

良好的耐化學性（機油，油脂，燃料，非極性溶劑）；不耐強酸、強堿和熱水或蒸汽

ESD safe material, (avoids dust attraction, sparks generation,ignition sources)ESD防靜電（避免塵埃，火花，點火源）

typical applications include handling of sensitive components and devices (electronic components, micro-mechanical parts, glass and ceramic substrates, capillary, etc.)

典型應用包括處理敏感組件和設備，如電子元件、芯片、微機械零件、玻璃和陶瓷基板、毛細管等

2、High-performance plastic type CP高性能塑料PEEK聚醚醚銅

PEEK/CF30 polyetheretherketone reinforced with 30 wt% carbon fibre

very hard, rigid, high tensile and flexural strength, very high wear resistance

high heat capability (260-300°C), good dimension stability, low thermal linear expansion coefficient

excellent resistance to chemicals and aggressive agents, excellent resistance to thermal ageing

ESD safe material, low surface resistivity (105 Ohm)

typical applications include handling of components in cleaning/chemical/assembly processes also at high temperatures (soldering)

含30wt％的碳纖維增強的PEEK/CF30聚醚醚酮

非常堅硬，剛性，高抗拉強度和撓曲強度，非常高的耐磨性

高熱容量（260-300°C），良好的尺寸穩定性，低的線性熱膨脹系數

出色的耐化學品和耐腐蝕性能，出色的抗熱老化性能

ESD安全材料，低表面電阻率（10^5歐姆）

典型應用包括清潔、化學溶劑環境、組裝過程中處理元件，可在高溫焊接下操作

瑞士IDEAL-TEK鑷子可替換頭系列型號規格

ideal tek鑷子可替換塑料頭規格說明書http://iamabigfatstupidface.com/download/202002/ideal-tek_4WFCPR_5CFR_259CFR.pdf
