美國EXCELTA 7275E彎頭剪鉗0.45mm導線齊平剪切

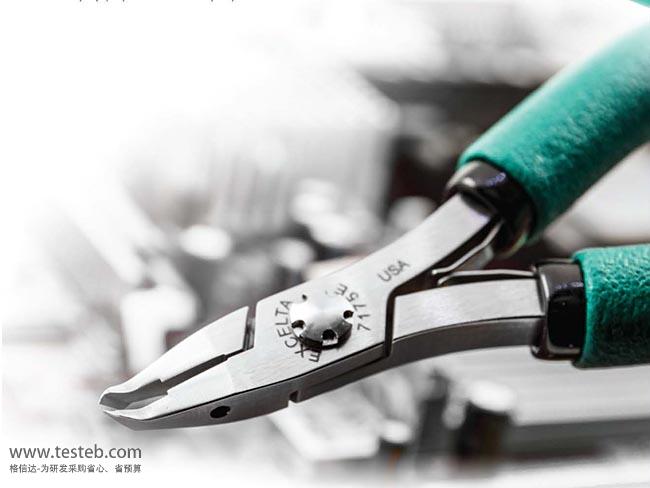

Excelta 7275E剪鉗具有50度彎頭,彎角頭提供不同角度的精確剪切,剪切能力0.45mm軟導線,切口齊平,MADE IN USA美國制造,質量等級5星,防靜電模塑手柄,用于精密電子、軍工航天等嚴苛要求領域。

剪切鉗品牌:美國Excelta
美國Excelta

請撥打電話,或在線聯系我們,告訴我們你要什么
您將會得到省事省心的產品選型、價格報價服務!
7275E說明書
  • 美國Excelta鉗子剪鉗7275E
  • 美國Excelta鉗子剪鉗7275E
  • 美國Excelta鉗子剪鉗7275E

7275E圖片

  • 7275E
  • 7275E
  • 7275E

美國Excelta 7275E 剪切鉗規格參數與圖片

美國Excelta品牌從1950年開始制造精密手工具,提供各類高品質鑷子、鉗子、剪鉗和小型精密工具,被廣泛應用于軍工、航天航空、鐘表維修、 醫療器械制造、電子裝配領域,旗下?lián)碛蠩XCELTA®, Altima®, Precista®, Optima®, Cobaltima®, Neverust®, Selecta®, Lazer Line ™, Ergo-Tweeze®, Intellitweeze® 和TweezerMeter®等注冊商標。



Excelta剪鉗采用美國制造的優質鋼材料,利用激光技術與最先進的CNC數控加工技術相結合,剪切刀刃硬度高達63~65洛氏硬度,具有優良的耐用性和精密度。美國Excelta 7275E剪鉗50度彎角頭提供不同角度的精確剪切,剪徑0.45mm軟線,★★★★★5星質量等級,先進的材料與超精密性能用于最關鍵的應用,鉗子全長120mm,單色防靜電塑料柄,MADE IN USA美國制造,產地加州。



進口美國EXCELTA CUTTERS 7000系列剪鉗型號規格表

型號 鉗頭 剪徑(Soft軟線) 切口類型 長度及手柄類型
7175E 中等彎角頭 0.45mm,0.018" MF齊平 150mm,雙色長柄,符合人體工程學
7275E剪鉗 中等彎角頭 0.45mm,0.018" MF 120mm,標準模塑柄
7182E 中等彎角頭 0.63mm,0.025" MF 150mm,雙色泡沫手柄長款,ESD防靜電
7282E 中等彎角頭 0.63mm,0.025" MF 120mm,單色標準塑料柄
7171E 極小尖頭,點剪切 0.25mm,0.010" OF完全齊平 145mm,雙色泡沫手柄長款
7271E 極小尖頭,點剪切 0.25mm,0.010" OF 130mm,單色標準塑料柄
7170EA 尖口頭 0.50mm,0.020" OF 155mm,雙色泡沫手柄長款
7270EA 尖口頭 0.50mm,0.020" OF 130mm,單色標準塑料柄
7170E 中等細尖頭 0.50mm,0.020" OF 155mm,雙色泡沫手柄長款
7270E 中等細尖頭 0.50mm,0.020" OF 120mm,單色標準塑料柄
7149E Relieved Fine Tips 0.63mm,0.025" OF 145mm,雙色泡沫手柄長款
7249E Relieved Fine Tips 0.63mm,0.025" OF 125mm,單色標準塑料柄

美國excelta 7000系列剪鉗規格說明書http://iamabigfatstupidface.com/download/201810/EXCELTA_7140E_7275E.pdf



EXCELTA剪鉗性能規格對比表格

系列 型號 切口形狀 軟硬線材 線徑(毫米/英寸/線規)
Slim Line
錐形尖口鉗
9140E泡沫雙色長柄
9240E泡沫雙色短柄
SF半齊平
Semi-Flush
Soft 1.05mm,0.042"
9141E/9241E MF齊平
Maximum-Flush
Soft 1.0mm,0.041",18 AWG
9142E/9242E剪鉗 OF完全齊平
Optimum-Flush
Soft 0.8mm,0.032",20 AWG
9143E/9243E SF Soft 1.0mm,0.041",18 AWG
9144E/9244E MF Soft 0.9mm,0.036"
9145E/9245E OF Soft 0.8mm,0.032"
9146E/9246E SF Soft 0.9mm,0.036"
9147E/9247E MF Soft 0.8mm,0.032"
9148E/9248E OF Soft 0.75mm,0.030"
Medium Head
中等橢圓頭斜口鉗
7140E剪鉗雙色泡沫手柄
7240E單色模塑手柄ESD
SF Soft 1.27mm,0.050"
7141E/7241E MF Soft 1.14mm,0.045"
7142E/7242E OF Soft 1.05mm,0.042"
7143E/7243E SF Soft 1.14mm,0.045"
7144E/7244E MF Soft 1.05mm,0.042"
7145E/7245E OF Soft 1.0mm,0.041"
7146E/7246E SF Soft 1.05mm,0.042"
7147E/7247E MF Soft 1.0mm,0.041"
7148E/7248E OF Soft 0.90mm,0.036"
Large Head
大型剪鉗
7210E MF Soft 1.27mm,0.050"
9250E SF Soft 1.50mm,0.060"
9251E MF Soft 1.50mm,0.060"
9260E SF Soft 2.00mm,0.080"
9261E MF Soft 2.00mm,0.080"
Tip Cutter
點剪切
7171E/7271E OF Soft 0.25mm,0.010"
7170EA/7270EA OF Soft 0.50mm,0.020"
7170E/7270E OF Soft 0.50mm,0.020"
7149E/7249E OF Soft 0.63mm,0.025"
Angulated
彎頭鉗
7175E/7275E彎頭剪鉗 MF Soft 0.45mm,0.018"
7182E/7282E MF Soft 0.63mm,0.025"
7172E/7272E MF Soft 0.8mm,0.032"
7104E/7204E MF Soft 0.63mm,0.025"
90°垂直剪鉗 7174E/7274E OF Soft 0.50mm,0.020"
7173E/7273E OF Soft 0.50mm,0.020"
Carbide Insert
鎢鋼合金刀刃(剪切硬線
如不銹鋼、彈簧鋼、鎳、
錸鎢針、合金絲等)
7241EHT硬質鎢鋼剪鉗 MF Hard硬線 0.38mm,0.015"
7247EHT MF Hard硬線 0.38mm,0.015"
2899EHT SF Hard硬線 0.3mm,0.012"
2897EHT硬線剪鉗 SF Hard硬線 0.50mm,0.020"
2896EHT SF Hard硬線 0.25mm,0.010"
2876EHT SF Hard硬線 0.8mm,0.032"

鉗子圖片及規格說明文檔http://iamabigfatstupidface.com/download/201810/Excelta_Cutter_Shape_Wire.pdf
